7/16" Dragon Climbing Line

Features, Construction & Technical Information

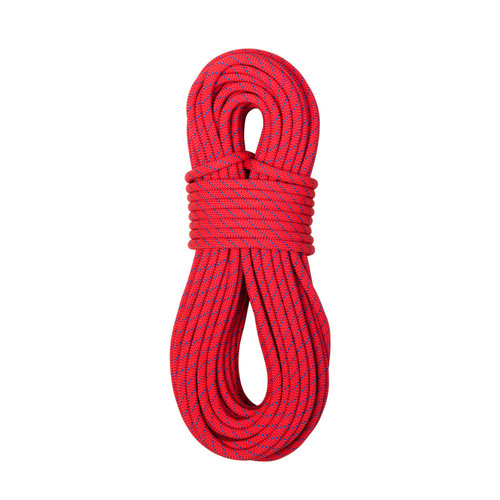

Dragon is a very strong kernmantle line, that is semi-static and perfect for SRS climbing.

Dragon got its name due to it's high strength and scaley, hi-vis appearance. Dragon is a very strong kernmantle line, that is semi-static and perfect for SRS climbing. It's 11.1 mm diameter feels good in-hand, and functions nicely in most mechanical devices.

Dragon is a low-creep rope, taking full advantage of its 32-strand polyester jacket over a parallel twisted nylon core. It's the nylon core that gives Dragon its strength, and a level of shock mitigation. Superior resistance to abrasion and UV is achieved with the high-tenacity polyester sheath.

The low-stretch nature of Dragon is designed to absorb some of the bounciness experienced when ascending with a stationary rope system (SRS), compared to more unforgiving full polyester kernmantles.

• Kernmantle
• Abrasion resistant
• UV resistant
• Low-stretch, absorbs bounce during SRS climbing
• 32 strand polyester sheath over a parallel twisted nylon core

Diameter                                 7/16"

Minimum Break Strength (lbs)7,900

Minimum Break Strength (kN)35.2

Elongation@540lbs (%)          1.6

Weight (lbs/100')                     5.4

Weight (g/m)                            81

Sheath percentage (%)           51

Sheath Material                      Polyester

Core Material                          Nylon

WLL (lbs)                                 790

WLL (kN)                                 3.5
